ant. analyzér s rozsahem 0,1-70 MHz
rozšířitelný po zakoupení licence Advance do 230 MHz
nebo licence RFE do 500 MHz


-----

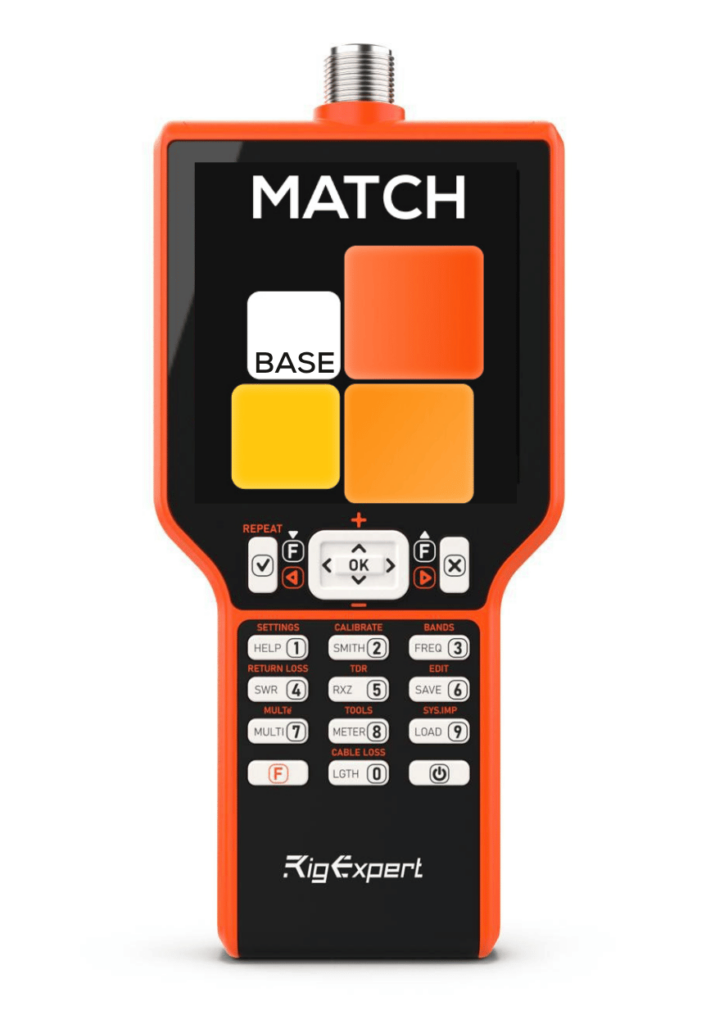

MATCH Upgradeable Antenna Analyzer


Frequency range

0.1 to 70 MHz and the range can be upgraded to 230 MHz (Advance license) and 500 MHz (RFE license)

Operation modes

R, X chart
Return loss chart
Smith chart (Advanced, RFE licenses)
SWR at single or multiple frequencies
SWR chart
SWR, return loss, R, X, Z, L, C at single frequency
Time Domain Reflectometery (TDR) chart (RFE License)

Tools

cable loss and characteristic impedance measurement (Advanced, RFE licenses)
Length & velocity factor (Advanced, RFE licenses)
OSL calibration (Advanced, RFE licences)
Self-test
Stub tuner (Advanced, RFE licenses)
User OSL: 10 profiles available (RFE license)

Factory OSL

Yes

Display

480x480 color TFT 4.0” LCD display

Built in Helper

Yes, at the push of a button

Output power

-10 dBm (at 50 Ohm load)
